New KVM Fiber Optic Extender with USB2.0 and 2K/4K HDMI supporting touch screen u disk moveable disk usb camera

KVM fiber optic extender, also called HDMI & USB2.0 to Fiber Converter. The device includes a transmitter (client-side) and a receiver (host-side), which can extend the 4K/2K HDMI and USB2.0 to a remote location over 1or 2 core fiber cable, max distance 20km (Single Mode fiber cable). The device can extend high bandwidth USB 2.0 webcams and storage devices ,be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.

Features:
1) Max extension distance 20km (Single mode fiber cable).
2) Single fiber transmission, pure hardware design, no driver needed,
3) Compatible with all operation systems, support plug and play
4) Support USB2.0 devices

Suppot Items:
1) Support HDMI, ( 4K/2K )
2) Support USB mouse and USB keyboard;
3) Support USB2.0 Disk;
4) Support USB2.0 Camera;
5) Support USB2.0 Moveable Disk;
6) Support USB2.0 Printer;
7) Support USB2.0 Touch Screen;
8) Support USB Audio;
9) Support RS232, RS422, RS485 Data ( selectable );
10) Support EDID, support most of the display devices;

Specification

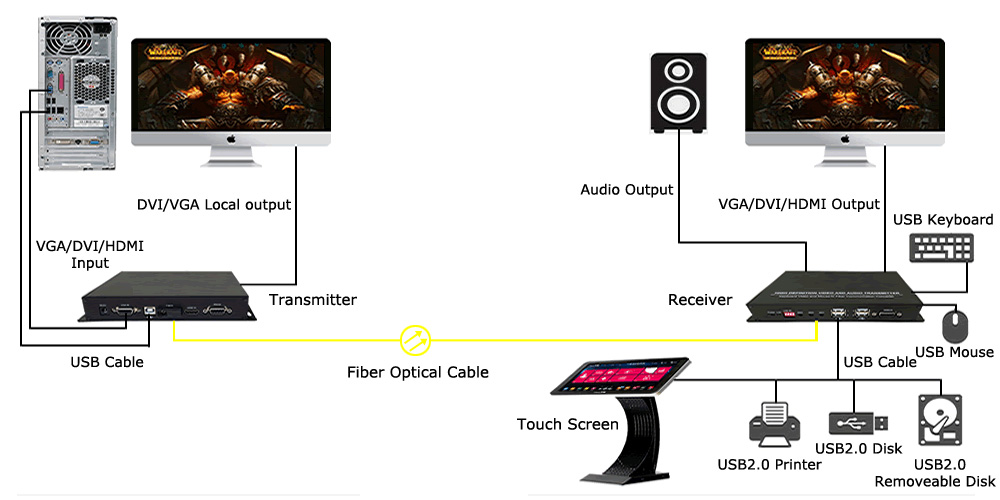

Application diagram:

New KVM Fiber Optic Extender with USB2.0 and 2K/4K HDMI supporting touch screen u disk moveable disk usb camera Images
